| Article number: |
5336769 |
| Delivery time: |
out of stock with us - may be in stock with supplier to order - if you are able to order above we will order it in for you - allow an extra 7 days for your delivery/pick up. |

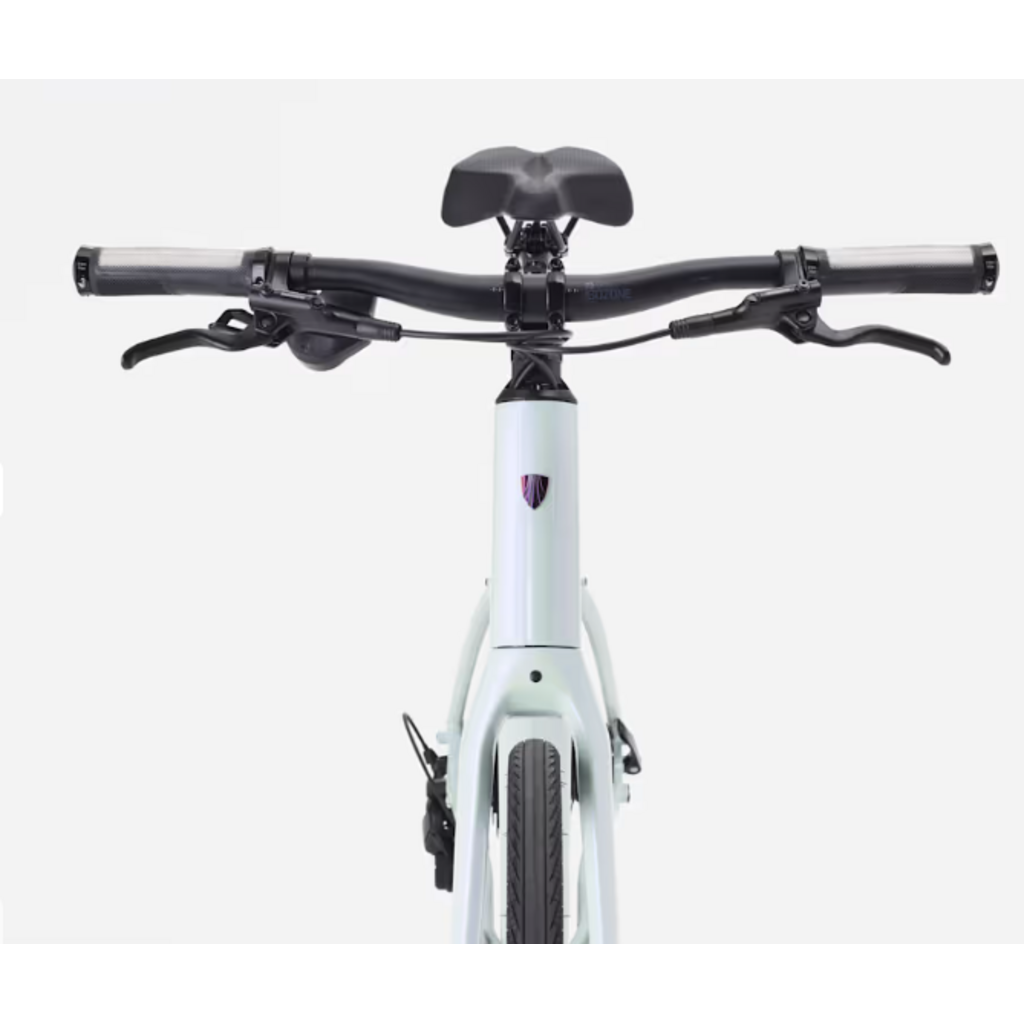

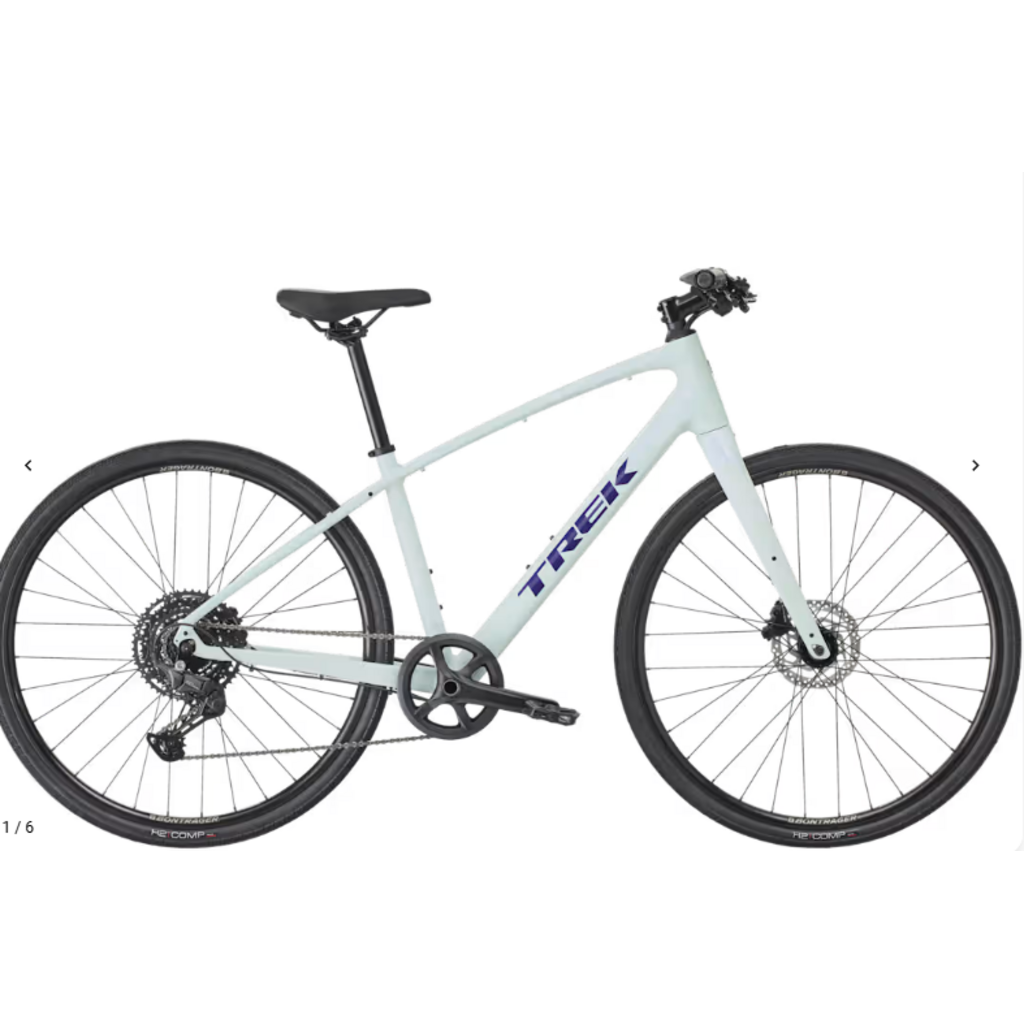

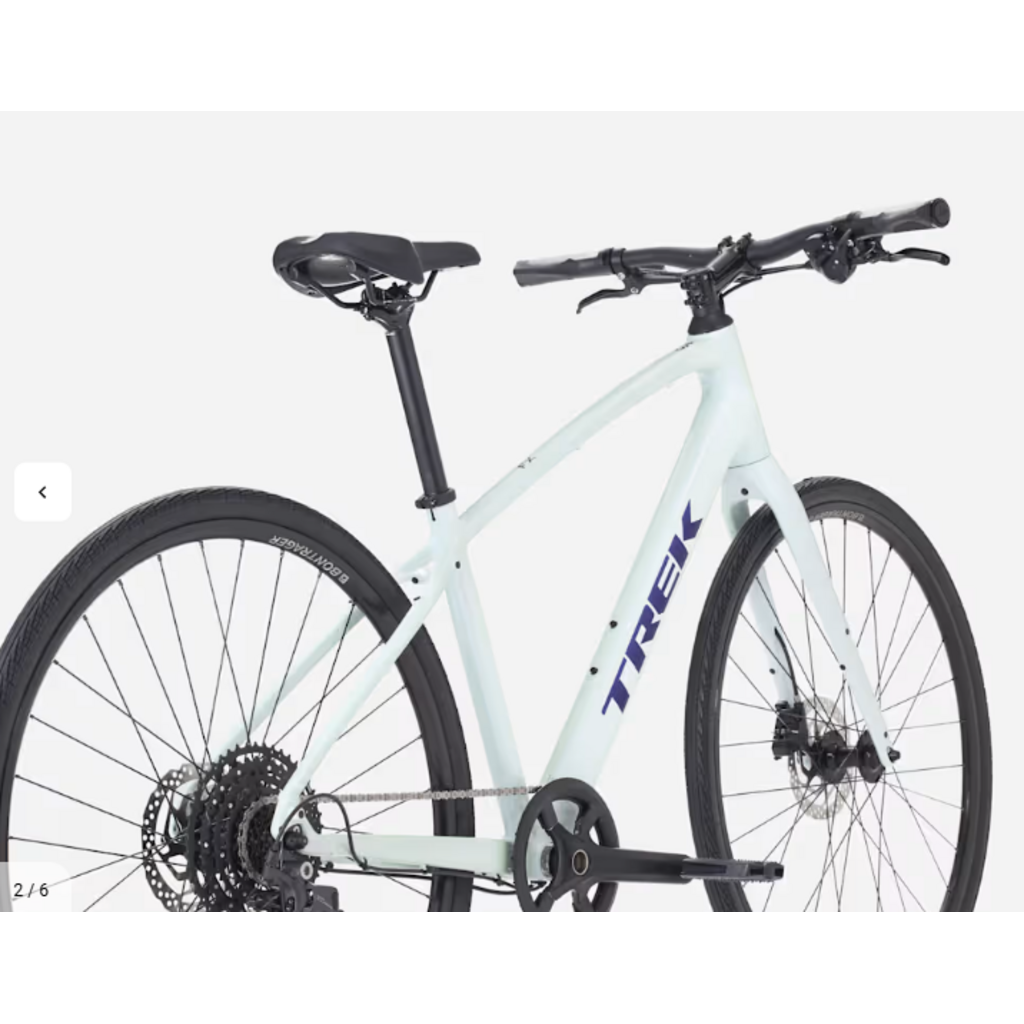

Its lightweight aluminum frame, carbon fork, and active geometry keep handling quick and efficient, while a 10-speed Shimano CUES drivetrain and hydraulic disc brakes deliver smooth shifting and confident stopping power. Whether you’re commuting, getting in miles after work, or cruising rail trails on the weekend, FX 3 is ready to roll.
- Frame
-
Alpha Gold Aluminium, internal cable routing, rack & mudguard mounts, post mount disc, kickstand mount, 135x5 mm QR
- Fork
-
- Hub front
-
Formula DC-20, alloy, 6-bolt, 100x5 mm
- Skewer front
-
- Hub rear
-
Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm
- Skewer rear
-
- Rim
-
Bontrager Tubeless Ready Disc, 32-hole, Presta valve
- Tyre
-
- Max tyre size
- 700x40 mm
- Shifter
-
Shimano CUES U6000 w/optical gear display, 10-speed
- Rear derailleur
-
- *Crank
-
- Cassette
-
Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed
- Chain
-
- Pedal
-
- Max. chainring size
- 1x: 44T, 2x: 46/32
- Saddle
-
- *Seatpost
-
Size: XS, S, M
Bontrager alloy, 27.2 mm, 12 mm offset, 330 mm length
Size: L, XL
Bontrager alloy, 27.2 mm, 12 mm offset, 400 mm length
- *Handlebar
-
Size: XS, S, M
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 600 mm width
Size: L, XL
Bontrager Comp Lowriser, alloy, 31.8 mm, 15 mm rise, 660 mm width
- Grips
-
- *Stem
-
Size: XS, S
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 90 mm length
Size: M, L, XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 100 mm length
- Brake
-
Shimano hydraulic disc, MT201 lever, UR300 calliper
- Brake rotor
-
Shimano RT26, 6-bolt, 160 mm
- Rotor size
- Max brake rotor sizes: 160mm front & rear
- Weight
- M – 11.65 kg/25.69 lb
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
