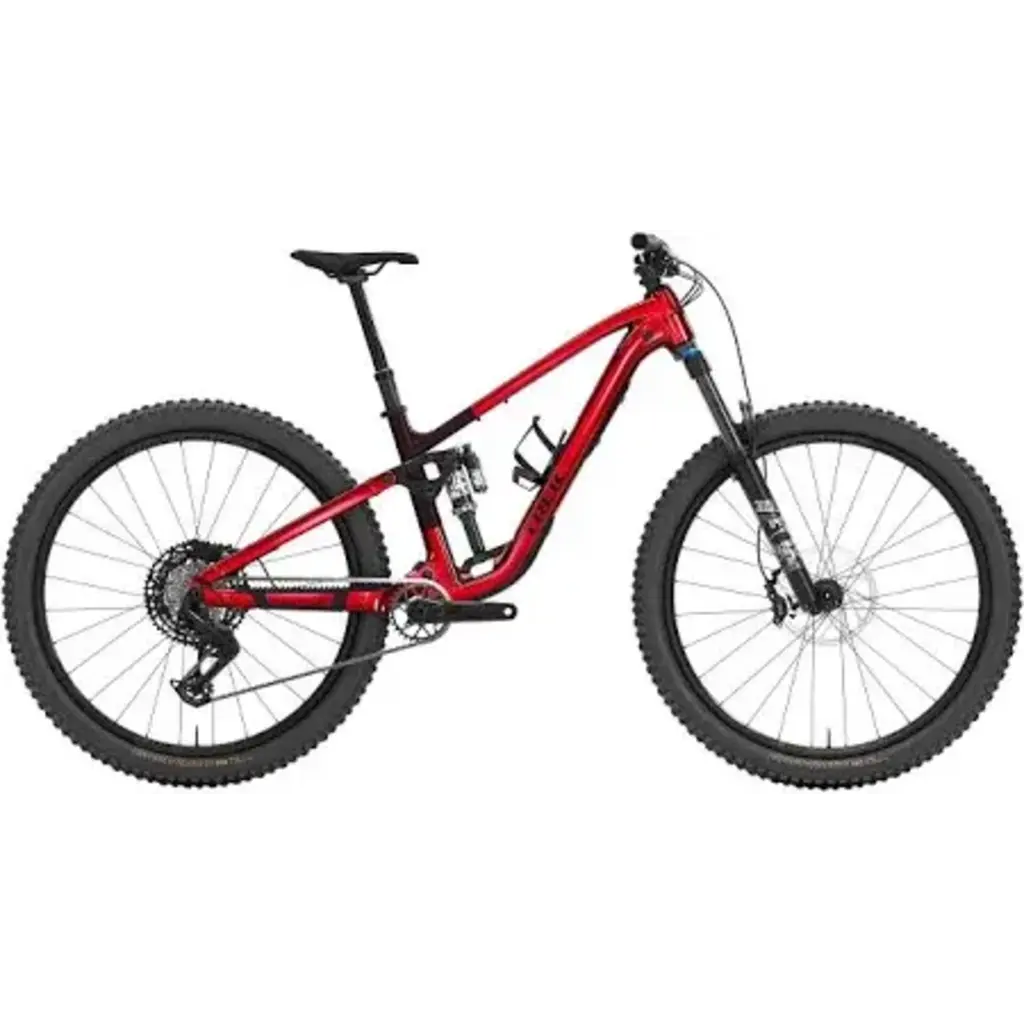

It comes ready to rip with an Alpha NEXT Platinum frame, Fox performance suspension package with 145 mm/150 mm travel (rear, front), alloy Bontrager Line wheels and a SRAM Eagle 70 transmission that keeps shifts smooth, even under load. It's topped off with 4-piston SRAM DB 8 hydraulic disc brakes to keep you stopping on a penny.
- Frame
-
Alpha NEXT Platinum aluminium, internal storage, ZS headset, adjustable leverage rate, guided internal routing, interchangeable alloy rocker link, interchangeable lower shock mount, downtube guard, shuttle guard, BSA 73, ISCG 05, ABP, UDH, Boost148, adaptable travel 145 mm-160 mm
- Fork
-
Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt X axle, 150 mm travel
- Shock
-
Fox Performance Float X, 2-position damper, 205 mm x 60 mm
- Hub front
-
Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle
- Hub rear
-
Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano freehub, Boost148, 12 mm thru axle
- Skewer rear
-
- Rim
-
Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
- *Tyre
-
Size: S, XL, L, M
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.50"
Size: S
Bontrager Brevard Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.50"
- Tyre part
-
Bontrager TLR sealant, 180 ml/6 oz
- Rim strip
-
- Max tyre size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
- Rear derailleur
-
- Crank
-
SRAM Eagle 70, DUB, 30T steel, T-Type, 55 mm chainline, 170 mm length
- Bottom bracket
-
SRAM DUB MTB Wide, 73 m, BSA threaded
- Cassette
-
SRAM Eagle XS-1270, T-Type,10-52, 12-speed
- Chain
-
SRAM Eagle 70, T-Type, 12-speed
- Max. chainring size
- Max: 34T (oval – 32T) Min: 30T (oval – 32T)
- Saddle
-
Bontrager Verse P3, chromoly rails
- *Seatpost
-
- Handlebar
-
Race Face Turbine, alloy, 35 mm, 40 mm rise, 780 mm width
- Grips
-
- Stem
-
- Head set
-
- Brake
-
SRAM DB 8 4-piston hydraulic disc
- *Brake rotor
-
Size: S, XL, L, M
SRAM CenterLine 2.0, 6-bolt, 180 mm
Size: S, XL, L, M
SRAM CenterLine 2.0, 6-bolt, 200 mm
- Rotor size
- Max brake rotor sizes – Frame: 203 mm, min 180 mm, Fork: see fork manufacturer
- Weight
- M - 16.89 kg / 37.24 lbs (with TLR sealant, no tubes)
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
