Home > Madone SL 5 Gen 8 Matte Deep Smoke
Trek Madone SL 5 Gen 8 Matte Deep Smoke Trek Madone SL 5 Gen 8 Matte Deep Smoke Trek Madone SL 5 Gen 8 Matte Deep Smoke Trek Madone SL 5 Gen 8 Matte Deep Smoke

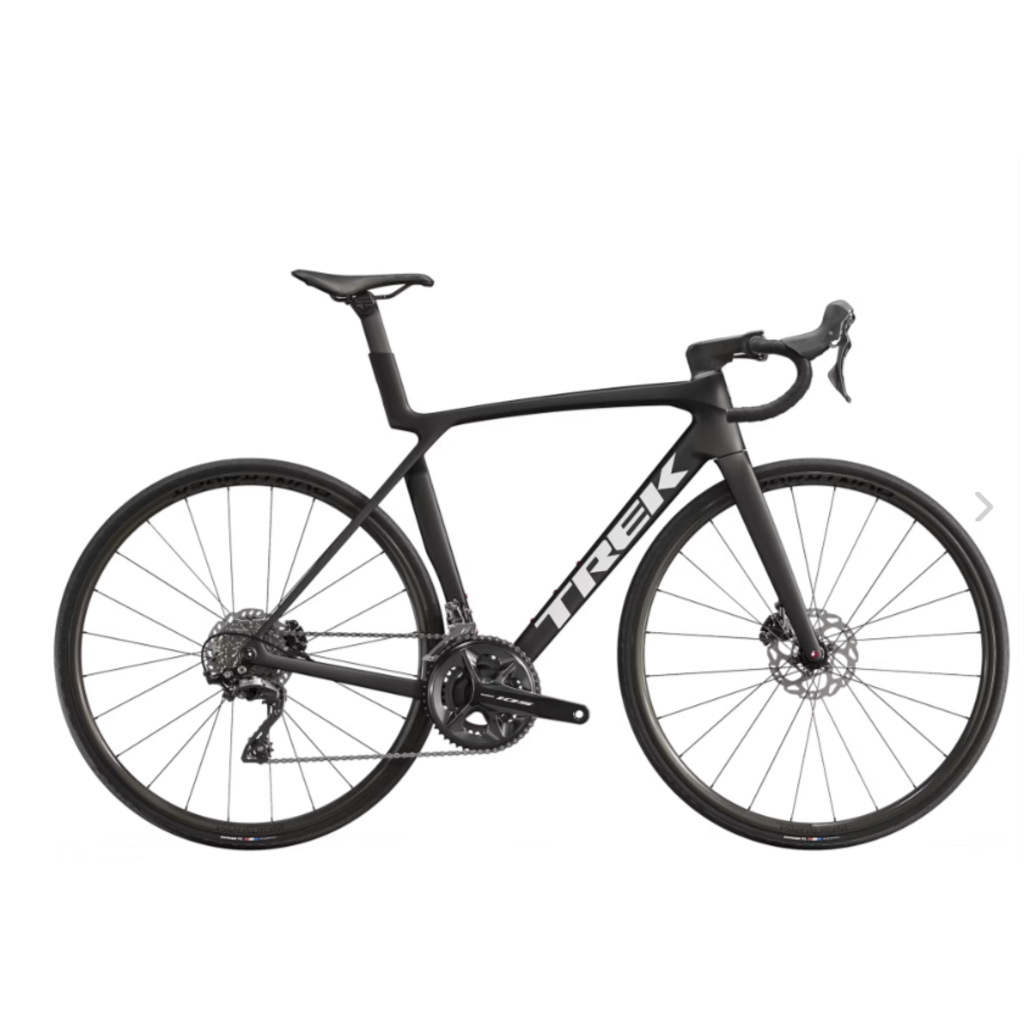

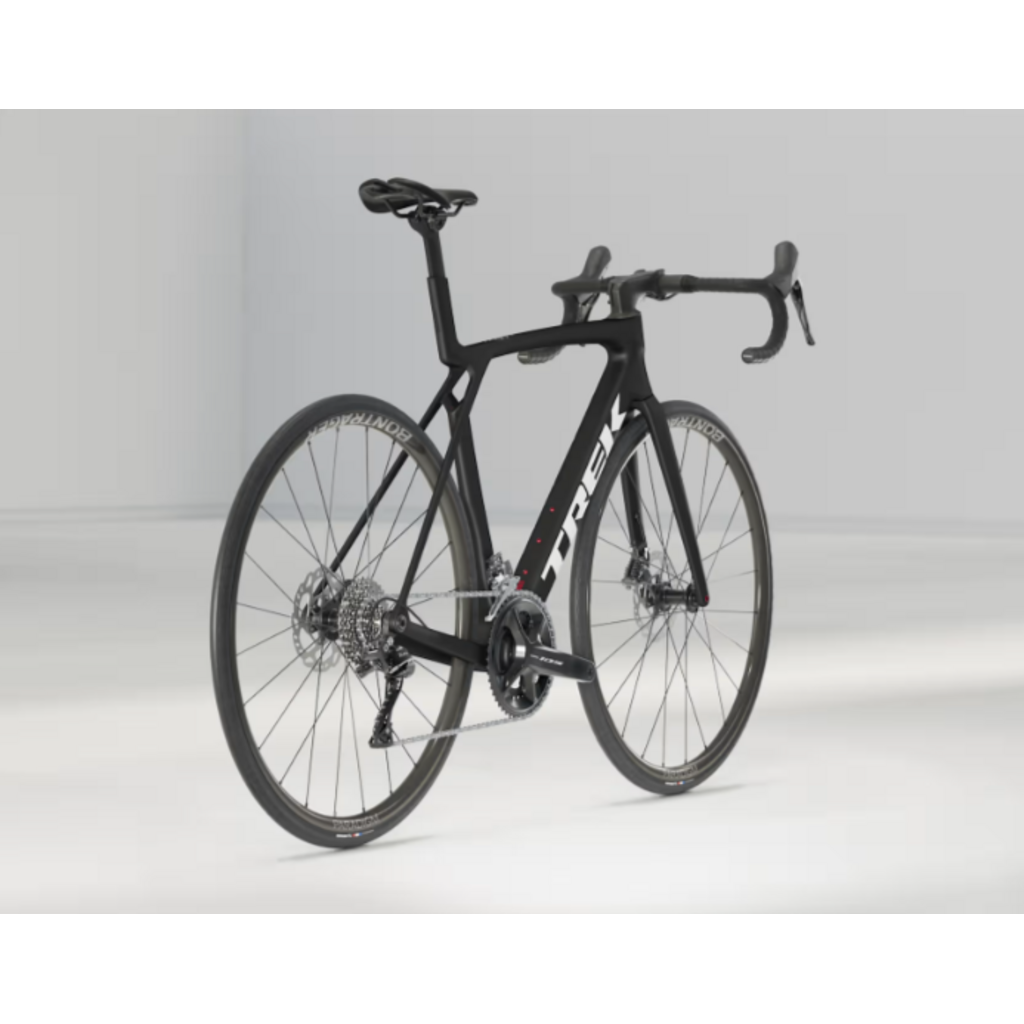

Trek Madone SL 5 Gen 8 Matte Deep Smoke
Trek Madone SL 5 Gen 8 Matte Deep Smoke
Trek Madone SL 5 Gen 8 Matte Deep Smoke
Trek Madone SL 5 Gen 8 Matte Deep Smoke

Madone SL 5 Gen 8 Matte Deep Smoke

$3,499.00
The Madone SL 5 Gen 8 is a lightweight aero road bike that brings elite racing tech to a lower price point.
Out of stock
Fast Shipping Sent next day. NOTE: Bikes, Scooters, Trainers and bulky items pickup only - unless agreed prior. Bikes (if we agree to send) must be sent to your local bikeshop that stocks same brand for final assembly.
Fast Same day Pickup, Please wait for email for collection - some items may need transferred from our local warehouse to your pick up store.
Article number: 5319898
Delivery time: out of stock with us - may be in stock with supplier to order - if you are able to order above we will order it in for you - allow an extra 7 days for your delivery/pick up.

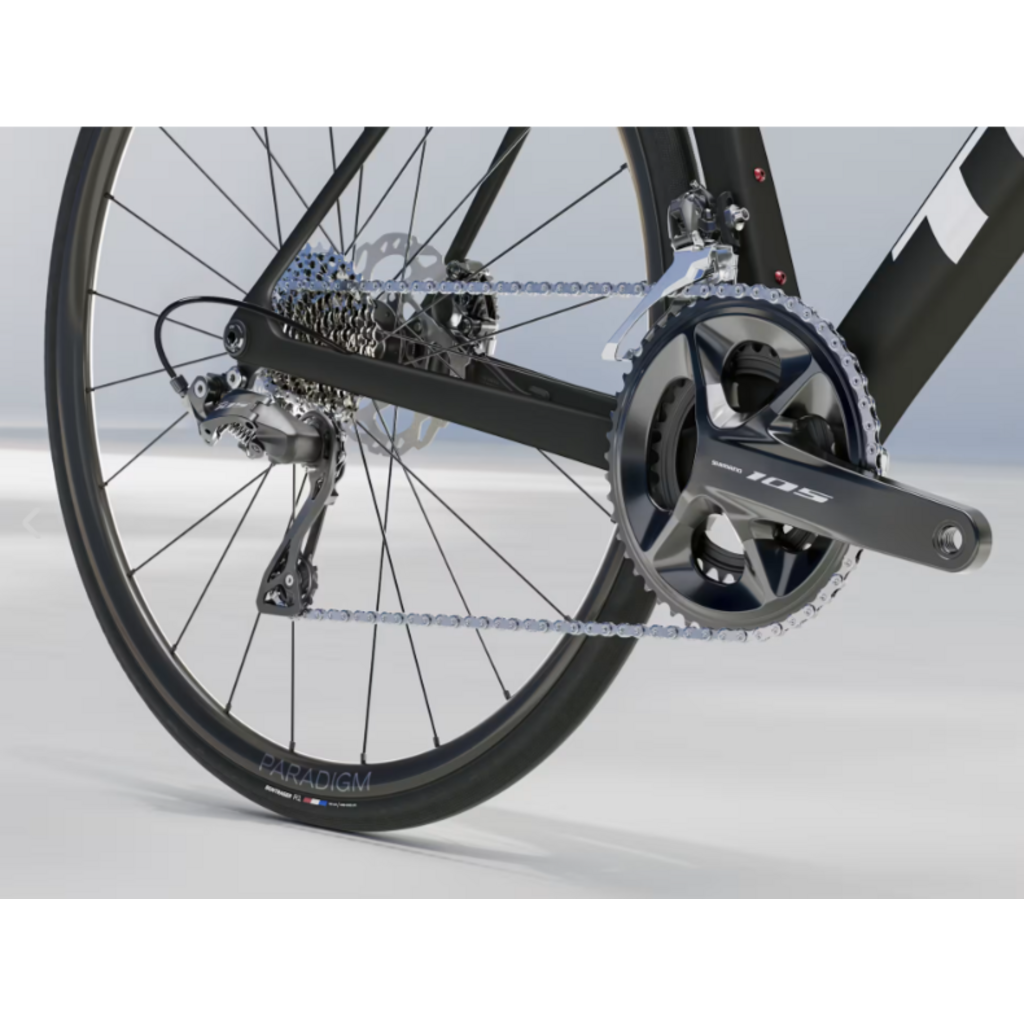

It offers similar aero benefits to the pricier Madone SLR Gen 8, but with a more economical OCLV 500 Carbon lay-up and two-piece cockpit with hidden cable routing. It's built to race, with geometry that keeps you quick on the sprints yet in control on fast descents. A Shimano 105 group set keeps the price down while still delivering clean mechanical shifting you can trust.

Frame
500 Series OCLV Carbon, Full System Foil tube shaping, IsoFlow seat tube, RCS Headset System, electronic or mechanical routing, removable aero chain keeper, T47 BB, flat mount disc, UDH, 142x12 mm thru axle
Fork
Madone Gen 8 full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm chamfered thru-axle

Weight
ML - 8.70 kg / 19.19 lbs (with tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).

Shifter
Shimano 105 R7120, 12-speed
Front derailleur
Shimano 105 R7100, braze-on, down swing
Rear derailleur
Shimano 105 R7100, 36T max cog
*Crank
Size: XS, S
Shimano RS520, 50/34, 165 mm length
Size: XS, S
Shimano 105 R7100, 50/34, 165 mm length
Size: M
Shimano RS520, 50/34, 170 mm length
Size: M
Shimano 105 R7100, 50/34, 170 mm length
Size: ML, L
Shimano RS520, 50/34, 172.5 mm length
Size: ML, L
Shimano 105 R7100, 50/34, 172.5 mm length
Size: XL
Shimano RS520, 50/34, 175 mm length
Size: XL
Shimano 105 R7100, 50/34, 175 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 7101, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 54T, 2x: 56/43

Hub front
Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
Skewer front
Bontrager Switch chamfered thru axle
Hub rear
Bontrager alloy, sealed bearing, CentreLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer rear
Bontrager Switch chamfered thru axle, removable lever
Rim
Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
Spokes
14 g stainless steel, black
Tyre
Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm
Max tyre size
32 mm (as measured, see manual for details)

*Saddle
Size: XS, S, M, ML, L, XL
Verse Short, steel rails, 145 mm width
Size: XS, S
Bontrager Aeolus Comp, steel rails, 155 mm width
Size: M, ML, L, XL
Bontrager Aeolus Comp, steel rails, 145 mm width
*Seatpost
Size: XS, S, M, XL
Madone aero carbon seat post, 0 mm offset, short length
Size: ML, L
Madone aero carbon seat post, 0 mm offset, long length

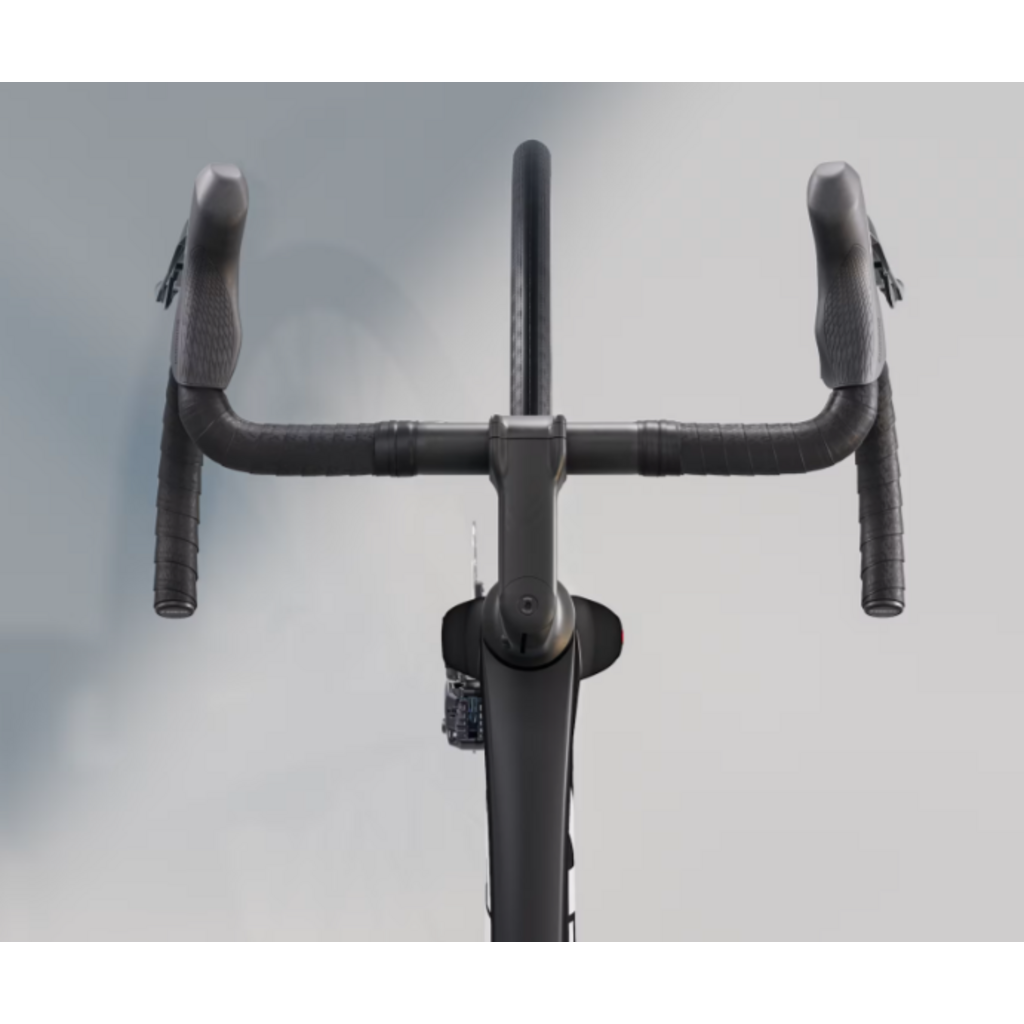

*Handlebar
Size: XS
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 36 cm control width, 40 cm drop width
Size: S, M
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 cm control width, 42 cm drop width
Size: ML, L
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 40 cm control width, 44 cm drop width
Size: XL
Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 42 cm control width, 46 cm drop width
Handlebar tape
Trek EcoTack, black
*Stem
Size: XS
Trek RCS Pro, -7-degree, 80 mm length
Size: S, M
Trek RCS Pro, -7-degree, 90 mm length
Size: ML, L
Trek RCS Pro, -7-degree, 100 mm length
Size: XL
Trek RCS Pro, -7-degree, 110 mm length
Brake rotor
Shimano RT70, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 180 mm front, 160 mm rear
