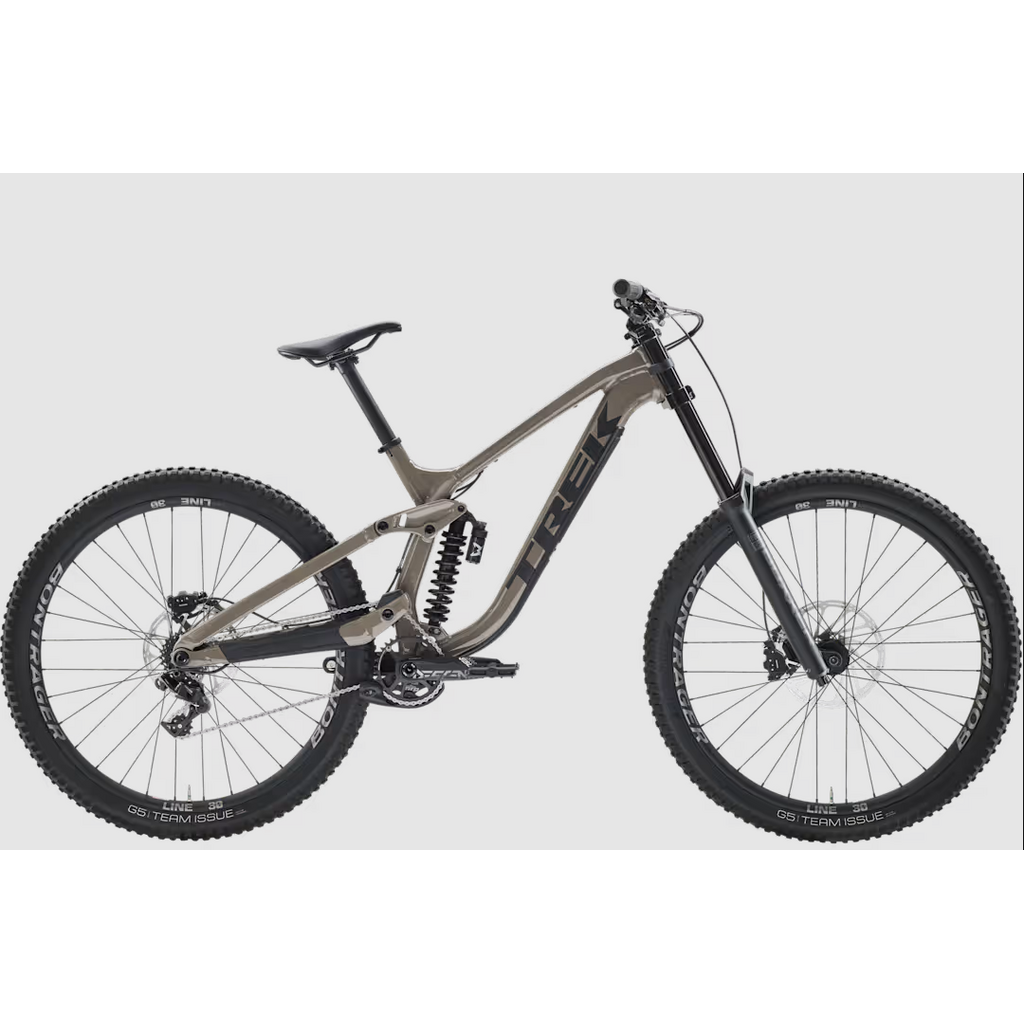

Its burly Alpha Platinum Aluminum frame features a high-pivot suspension design with 200mm of travel to keep you planted, composed, and carrying momentum through brutal rock gardens and blown-out berms.
A RockShox Boxxer Select fork and Marzocchi Bomber shock smooth the chaos, while SRAM Maven Bronze brakes and a GX DH 7-speed drivetrain deliver precise control when every second counts.
- Frame
-
Alpha Platinum Aluminium, high main pivot, idler pulley, integrated frame protection, internal or external routing, magnesium rocker link, Mino Link, ISCG 05 2-bolt mount, Active Braking Pivot, 157x12 mm thru-axle, 200 mm travel
- Fork
-
RockShox Boxxer Select, DebonAir+ spring, Charger 3.2 RC damper, 52mm offset, BoostDH 110x20 Maxle Stealth, 200mm travel
- *Shock
-
Size: R1
Marzocchi Bomber, 181 kg/400 lb spring, 250 mm x 72.5 mm
Size: R2
Marzocchi Bomber, 204 kg/450 lb spring, 250 mm x 72.5 mm
Size: R3
Marzocchi Bomber, 227 kg/500 lb spring, 250 mm x 72.5 mm
- Wheel front
-
Bontrager Line DH 30, Tubeless Ready, 6-bolt, 110x20 mm Boost thru axle, 29"
- Wheel rear
-
Bontrager Line DH 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano 7 speed freehub, 157x12 mm thru axle, 29"
- Tyre
-
Bontrager G5 Team Issue, wire bead, 2-ply 60 tpi, 29x2.50"
- Max tyre size
- Frame: 29x2.50", Fork: See manufacturer
- Shifter
-
- Rear derailleur
-
- Crank
-
Truvativ Descendant DH, DUB 83, 34-T steel ring, 165 mm length
- Bottom bracket
-
SRAM DUB, 83 mm, BSA threaded
- Cassette
-
SRAM PG-720, 11-25, 7-speed
- Chain
-
- Pedal
-
Wellgo BO-87B, alloy body, Cro-Mo axle, replaceable pins
- Max. chainring size
- 1x: 36T
- Saddle
-
- Seatpost
-
Bontrager Rhythm Elite, 31.6 mm, 0 mm offset, 330 mm length
- Handlebar
-
Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
- Grips
-
- Stem
-
- Head set
-
- Brake
-
SRAM Maven Bronze 4-piston hydraulic disc
- *Brake rotor
-
Size: R1, R2, R3
SRAM CenterLine, 6-bolt, round-edge, 220 mm
Size: R1, R2, R3
SRAM CenterLine 2.0, 6-bolt, 200 mm
- Rotor size
- Max brake rotor sizes - Frame: 220mm, Fork: see fork manufacturer
- Weight
- R2 - 18.80 kg / 41.45 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lbs).
