| Article number: | 5337094 |

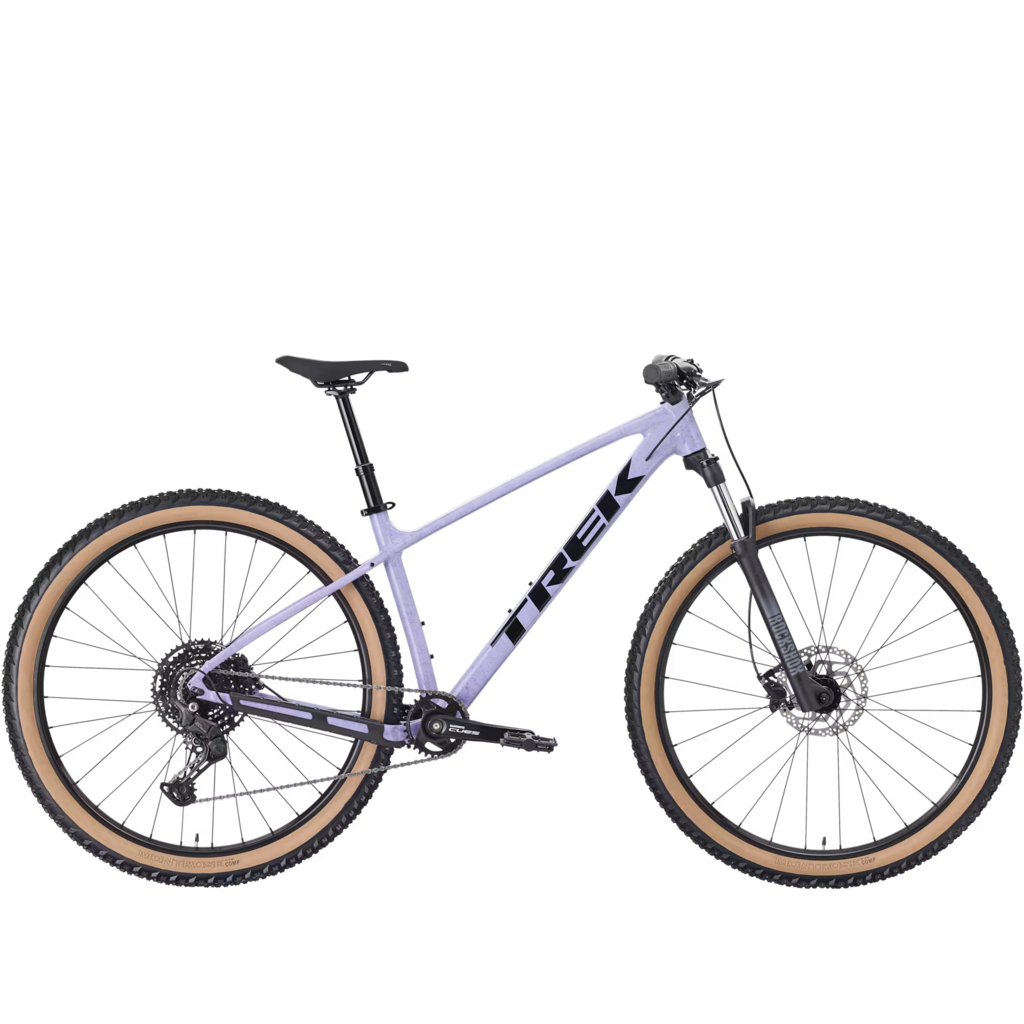

Its updated slacker frame geometry makes it easier to control on descents while the suspension fork takes the edge off bumpy trails. Integrated rack and kickstand mounts make it easy to add accessories to this versatile steed.
You want a trail bike that's dialled for building confidence on the dirt, and versatile enough for commuting to work or school.
A lightweight aluminium frame with modern trail riding geometry and internal routing that keeps cables protected and keeps the bike looking sleek. A 100 mm RockShox Judy front suspension fork that cushions rocks, roots and bumps in the trail, 10-speed fuss-free Shimano CUES shifting and the serious stopping power of hydraulic disc brakes.
The Marlin 6 is an ideal trail bike for riders who want to progress on the trail, and want a bike that can keep them rolling off of the trail too.
| *Frame | Size: XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
| *Fork | Size: XS , S RockShox Judy, coil spring, preload, TurnKey lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
| Size: M , ML , L , XL RockShox Judy, coil spring, preload, TurnKey lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Hub front | Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 173x5 mm QR |
| *Rim | Size: XS , S , M , ML , L , XL Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve |
| Size: M , ML , L , XL Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve |
|
| *Tyre | Size: XS , S Maxxis IKON, tubeless ready, EXO casing, folding bead, 60 tpi, 27.5x2.35'' |
| Size: M , ML , L , XL Maxxis Rekon Race, tubeless ready, EXO casing, folding bead, 60 tpi, 29x2.35" |
|
| Rim strip | Bontrager TLR |
| Shifter | Shimano U6000, 10-speed |
|---|---|
| Rear derailleur | Shimano CUES U6000 GS |
| *Crank | Size: XS , S , M , ML Shimano U4000, 30T chainring, 170 mm length |
| Size: L , XL Shimano U4000, 30T chainring, 175 mm length |
|
| Bottom bracket | Shimano, 73 mm, threaded cartridge, 122.5 mm spindle |
| Cassette | Shimano CUES LG300, LINKGLIDE, 11-48, 10-speed |
| Chain | Shimano LG500 |
| Pedal | VP-536 nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XS , S TranzX JD-YSI34, 100 mm travel, internal routing, 34.9 mm, 350 mm length |
| Size: M TranzX JD-YSI34, 125 mm travel, internal routing, 34.9 mm, 405 mm length |
|
| Size: ML , L , XL TranzX JD-YSI34, 150 mm travel, internal routing, 34.9 mm, 456 mm length |
|
| *Handlebar | Size: XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on |
| *Stem | Size: XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
| Head set | Semi-integrated, 1-1/8" |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL Shimano RT26, 6-bolt, 160 mm |
| Size: M , ML , L , XL Shimano RT26, 6-bolt, 180 mm |
|
| Brake Set | Shimano MT200 hydraulic disc |
| Weight | M - 15.00 kg / 33.07 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
