| Article number: | 5341140 |

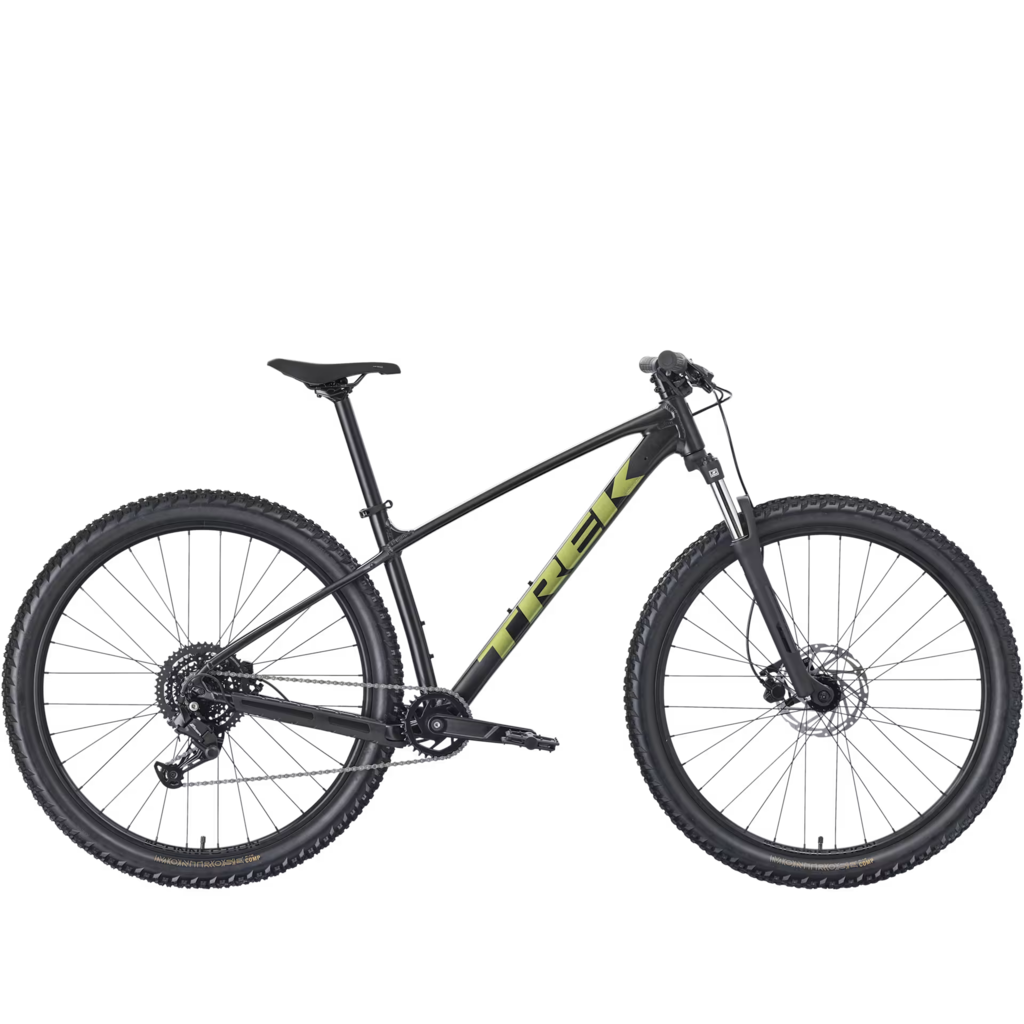

It features a trail-savvy frame with a suspension fork, 8-speed Shimano ESSA shifting and mounts for a rack and kickstand that make it an ideal choice for trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
| *Frame | Size: XXS , XS Alpha Silver Aluminium, curved top tube, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|---|---|
| Size: S , M , ML , L , XL , XXL Alpha Silver Aluminium, internal derailleur and dropper post routing, rack and kickstand mount, 135x5 mm ThruSkew |
|
| *Fork | Size: XXS SR Suntour XCM 30, coil spring, lockout, preload, 100 mm QR, 100 mm travel, 26" wheel |
| Size: XS SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel |
|
| Size: S SR Suntour XCE 28, coil spring, preload, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel |
|
| Size: M , ML , L , XL , XXL SR Suntour XCE 28, coil spring, preload, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel |
| Hub front | Formula DC-20, alloy, 6-bolt, 5x100 mm QR |
|---|---|
| Hub rear | Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR |
| Skewer rear | 173x5 mm QR |
| Rim | Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve |
| *Tyre | Size: XXS Bontrager Montrose Comp, wire bead, 30 tpi, 26x2.35'' |
| Size: XS , S Bontrager Montrose comp, wire bead, 30 tpi, 27.5x2.40" |
|
| Size: M , ML , L , XL , XXL Bontrager Montrose comp, wire bead, 30 tpi, 29x2.40" |
| Shifter | Shimano M315, 8-speed |
|---|---|
| Rear derailleur | Shimano ESSA U2000 |
| *Crank | Size: XXS , XS ProWheel alloy, 32T narrow-wide steel ring, 160 mm length |
| Size: S , M , ML ProWheel alloy, 32T narrow-wide steel ring, 170 mm length |
|
| Size: L , XL , XXL ProWheel alloy, 32T narrow-wide steel ring, 175 mm length |
|
| Cassette | Shimano HG300, 11-45, 8-speed |
| Chain | KMC Z8.3, 8-speed |
| Pedal | nylon platform |
| Saddle | Bontrager Verse Short, stainless steel rails |
|---|---|
| *Seatpost | Size: XXS Bontrager alloy, 31.6 mm, 12 mm offset, 300 mm length |
| Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length |
|
| Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length |
|
| *Handlebar | Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width |
| Size: S Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width |
|
| Size: M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Trek Line Comp, nylon lock-on |
| *Stem | Size: XXS , XS , S Bontrager Comp, 31.8 mm, 7-degree, 35 mm length |
| Size: M , ML , L Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length |
|
| Size: XL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length |
|
| Size: XXL Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 70 mm length |
|
| Head set | Semi-integrated, 1-1/8'' |
| *Brake | Size: XXS , XS , S Tektro HD-M276 hydraulic disc |
| Size: M , ML , L , XL , XXL Tektro HD-M275 hydraulic disc |
|
| *Brake rotor | Size: XXS , XS , S , M , ML , L , XL , XXL Tektro, 6-bolt, 160mm |
| Size: M , ML , L , XL , XXL Tektro, 6-bolt, 180mm |
| Weight | M - 14.90 kg / 32.85 lbs |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
