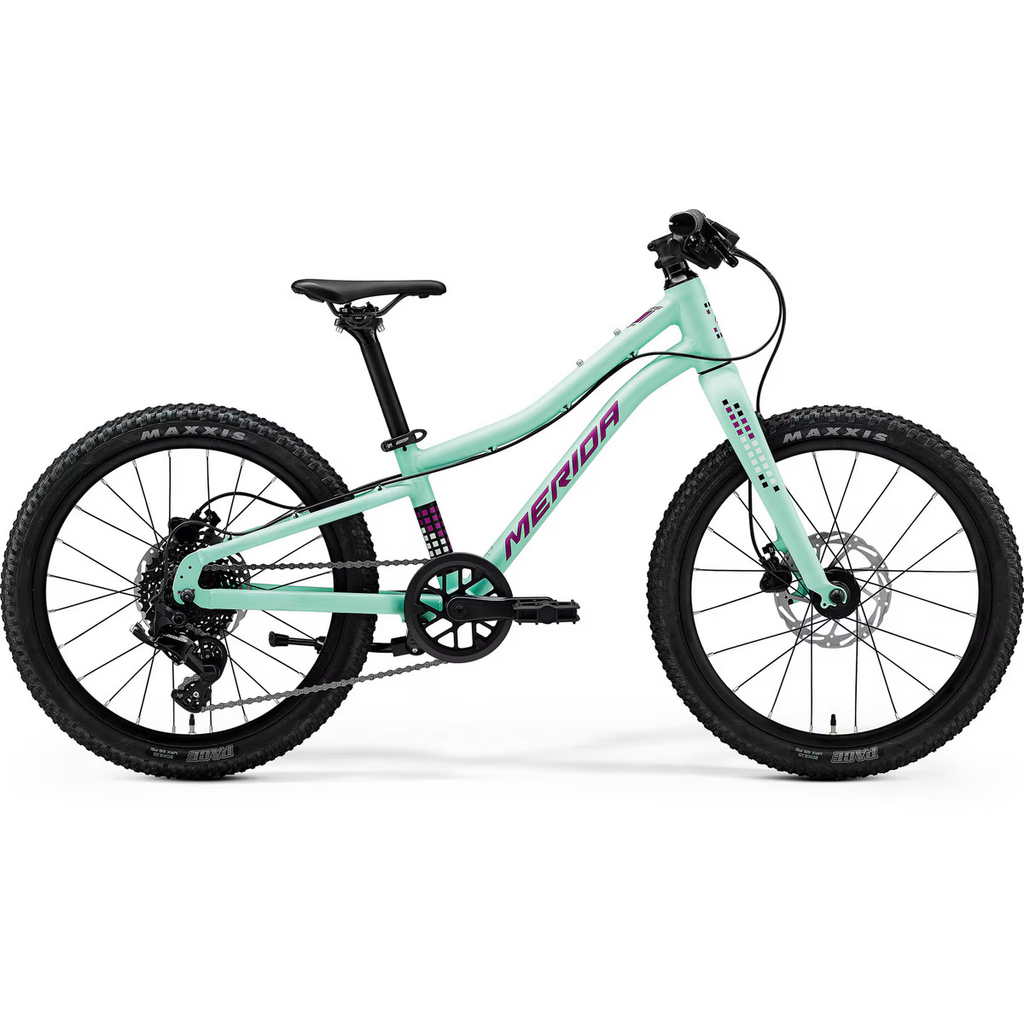

| Article number: | MEKI2601292 |
| ACCESSORIES | Adjustable alloy kickstand |
|---|---|
| BOTTOM BRACKET | Squared LL116 |
| BRAKES | F: Tektro HD-J2820 short reach | R: Tektro HD-J2820 short reach |
| CASSETTE | Sun Race M55; 11-34 ATC; 8 GER |
| CHAIN | KMC Z8.3 |
| COLOUR | MATT MINT(PURPLE/WHT/BLK) |
| CRANKSET | Prowheel A10PP; 32 ATC; MAT Aluminium; 114 mm |
| DERAILLEUR REAR | Microshift Acolyte Speed Super Short Cage; RD-M5180S; Super short cage |
| FORK | MERIDA MATTS J. 20+; MAT aluminium; 20x2.4" max. WHS |
| FRAME | MATTS J. 20+; MAT aluminium; 20x2.4" max. WHS; 135x9/100x9 AST; BSA BBR |
| GRIP | MERIDA EXPERT JR |
| HANDLEBAR | MERIDA EXPERT JR; MAT aluminium; 560 WHB; 25 RHB |
| HANDLEBAR STEM | MERIDA COMP CC; MAT aluminium; 31.8 DSH; 7 ASD; 50mm |
| HEADSET | FSA NO.10P Neck15 |
| HUBS | F: KT-K68F; 100x9 WHF; 20 SPH | R: KT-TD7R-M10; 135x9 WHR; 24 SPH |
| PEDALS | VP-225 |
| RIM | MERIDA JR 20+; MAT aluminium |
| ROTOR FRONT | Tektro TR160-52; 160mm |
| ROTOR REAR | Tektro TR160-52; 160mm |
| SADDLE | MERIDA COMP JR |
| SEAT CLAMP | MERIDA COMP QR |
| SEAT POST | MERIDA COMP CC; 27.2 DSP; 0 SSB; MAT aluminium |
| SHIFTERS | F: | R: Microshift Acolyte Quick Trigger Pro; SL-M6285-ER; Super short reach; Gear indicator; single click |
| SPOKES | Black steel |
| TYRES | F: Maxxis Pace; 20x2.10"; wired | R: Maxxis Pace; 20x2.10"; wired |
