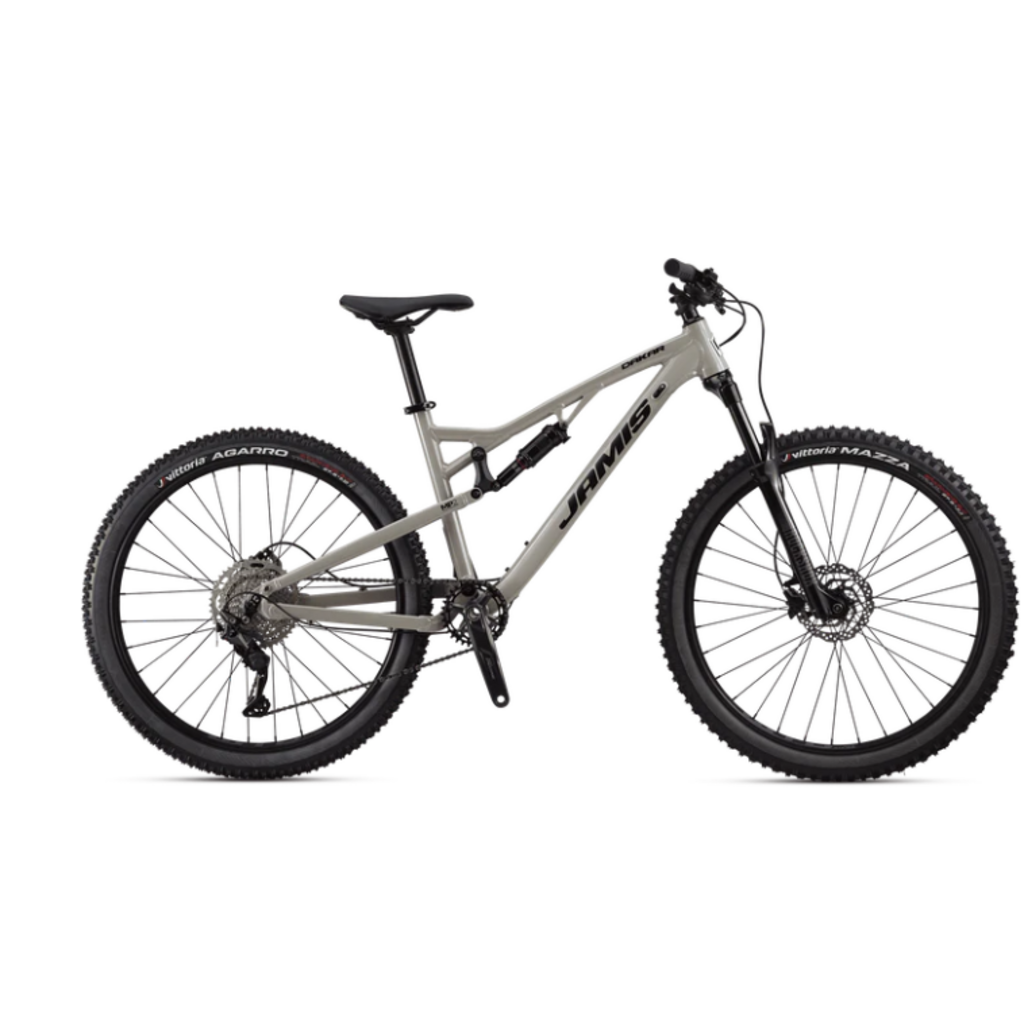

| Article number: | JSMT-22DAKTG-17 |
| Delivery time: | Pick up same day if ordered by 12pm (if in stock) |
| Frame Sizes | XS (14.5), S (15.5), M (17), L (19), XL (21) |
| Frame | Triple-butted 6061 alloy, 120mm travel mp2 suspension, 1.5 – 1 1/8” tapered head tube, asymmetrical chainstays w/12x142mm thru-axle dropouts, internal dropper post routing, ISCG05 chainguide mount, Rock Shox Monarch R air shock with rebound adjust, replaceable derailleur hanger |
| Fork | Rock Shox Judy Silver TK 27.5″, Solo Air compression, external rebound, Turn Key lockout, 30mm steel stanchions, magnesium lowers, 15x110mm axle, 120mm travel |
| Headset | FSA Orbit 1.5 Zero-Stack internal cup, 8mm cone spacer |
| Wheels | WTB STX i25 TCS 27.5″ tubeless rims, 32H, Shimano MT400 15x110mm front & 12x142mm rear hubs, stainless spokes |
| Tires | Vittoria Mazza 27.5 x 2.4” Front & Agarro 27.5 x 2.35” Rear, Tubeless |
| Derailleurs | Shimano Deore, 10-speed |
| Shift levers | Shimano Deore, 1×10-speed |
| Chain | KMC X10, 10-speed |
| Cassette | Shimano M4100, 10-speed, 11-46T |
| Crankset | Shimano Deore, 32T |
| BB Set | Shimano BSA |
| Pedals | N/A |
| Brakeset | Shimano MT200 hydraulic disc, 180mm front & 160mm rear RT10 rotors |
| Handlebar | Race Face Ride, 35 x 760mm |
| Stem | Race Face Ride, 50mm |
| Grips | Jamis Lock-On |
| Seat Post | Race Face Ride, 31.6 x 400mm |
| Saddle | Selle Royal Vivo Ergo |
| Colour | Thunder Grey |
| Weight NW | 32 lbs |
