Home > 2026 Marlin+ 8 Fury Red/Lithium Fade

Trek 2026 Marlin+ 8 Fury Red/Lithium Fade

2026 Marlin+ 8 Fury Red/Lithium Fade

$5,399.99 $3,999.99

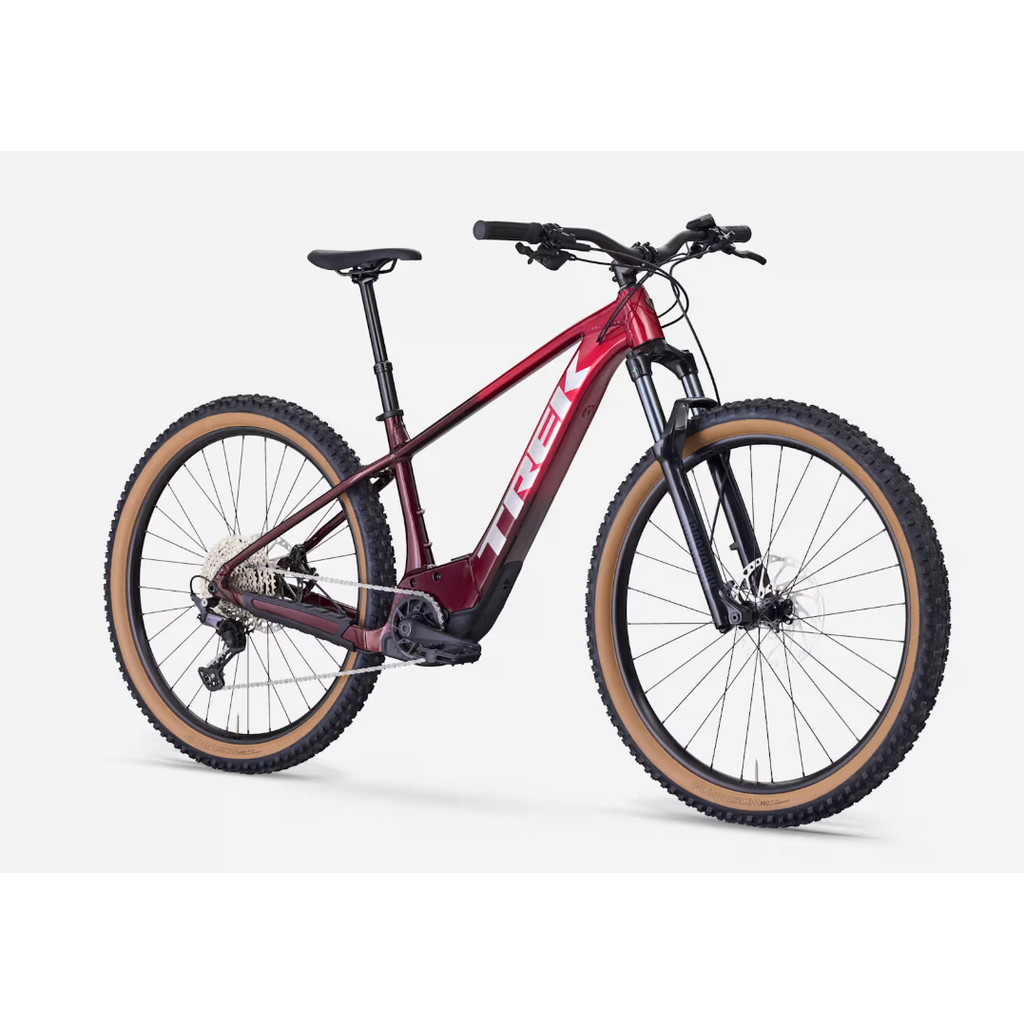

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank.

2 in stock

Fast Shipping Sent next day. NOTE: Bikes, Scooters, Trainers and bulky items pickup only - unless agreed prior. Bikes (if we agree to send) must be sent to your local bikeshop that stocks same brand for final assembly.

Fast Same day Pickup, Please wait for email for collection - some items may need transferred from our local warehouse to your pick up store.

Article number:	5337268
Delivery time:	Pick up same day if ordered by 12pm (if in stock)

A 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

*Frame: Size: XS

Alpha Gold Aluminium, curved top tube, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle

Size: S , M , L , XL

Alpha Gold Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle
*Fork: Size: XS

RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel

Size: S

RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel

Size: M , L , XL

RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel

Hub front: Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
Hub rear: Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
Skewer rear: Bontrager Switch thru axle, removable lever
*Rim: Size: XS , S , M , L , XL

Bontrager Line TLR 30, Tubeless-Ready, 32-hole, Presta valve

Size: XS , S , M , L , XL

Bontrager Line TLR 30, Tubeless-Ready, 28-hole, Presta valve
*Tyre: Size: XS , S

Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"

Size: M , L , XL

Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
Tyre part: Bontrager TLR sealant, 180 ml/6 oz
Rim strip: Bontrager TLR
Max tyre size: Frame: 29x2.6" (XS: 27.6x2.6") Fork: See manufacturer

Battery: Bosch CompactTube 400Wh
Charger: Bosch standard 2A, 230V, smart system
Computer: Bosch Purion 200

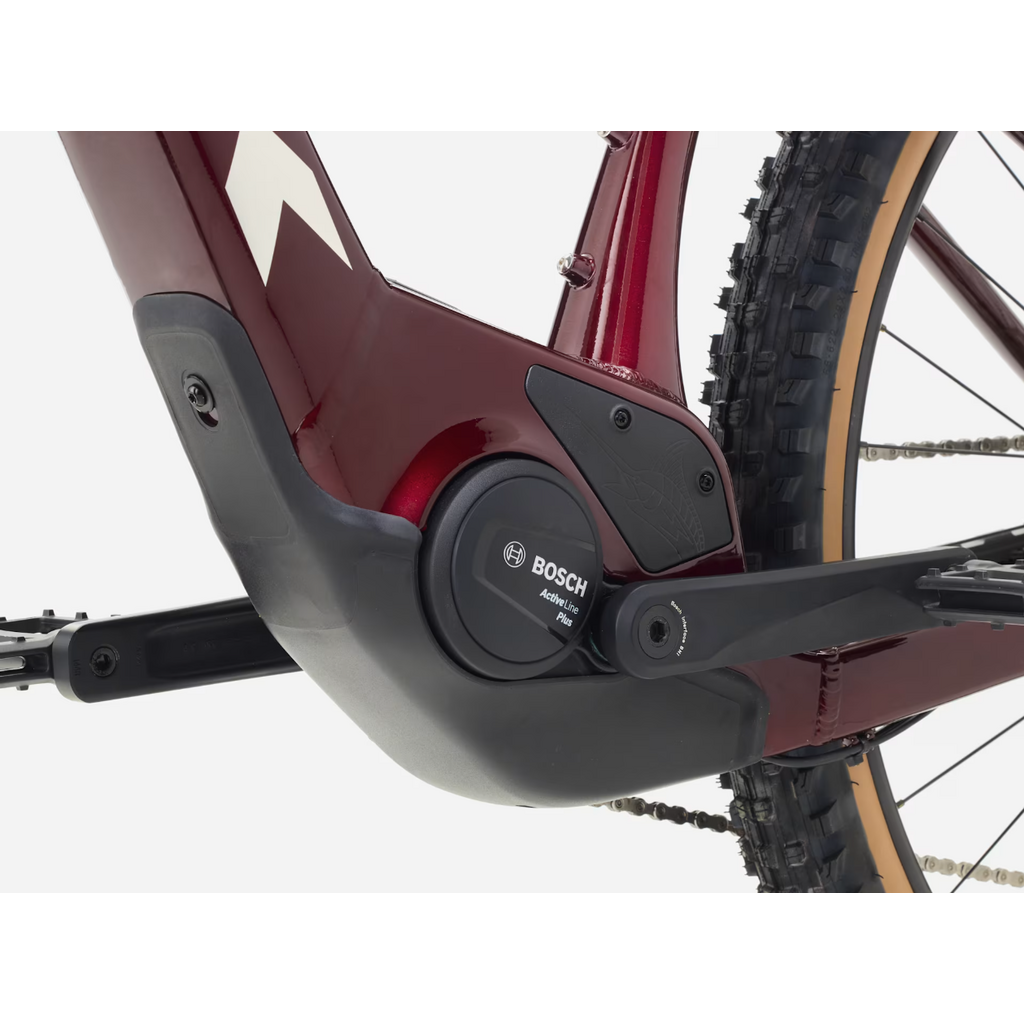

Motor: Bosch Active Line Plus, 50 Nm
E-bike Classification: Class 1
Max assist speed: 25 km/h

Shifter: Shimano Deore M6100, 12-speed
Rear derailleur: Shimano Deore M6100, long cage
Crank: FSA CK-220, 165 mm length
Chainring: FSA, 32T, steel w/guard
Cassette: Shimano Deore M6100, 10-51, 12-speed
Chain: Shimano Deore M6100, 12-speed
Pedal: VP-536 nylon platform
Max. chainring size: 1x: 36T, min 32T

Saddle: Bontrager Verse P3, chromoly rails
*Seatpost: Size: XS , S
TranzX JD-YSI34, 100 mm travel, internal routing, 31.6 mm, 350 mm length

Size: M , L

TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length

Size: XL

TranzX JD-YSI34, 170 mm travel, internal routing, 31.6 mm, 500 mm length
*Handlebar: Size: XS , S

Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width

Size: M , L , XL

Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
Grips: Trek Line Comp, nylon lock-on
*Stem: Size: XS , S

Bontrager Comp, 31.8 mm, 7-degree, 35 mm length

Size: M , L
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 50 mm length

Size: XL
Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, 60 mm length
Head set: Semi-integrated, sealed cartridge bearing, alloy cups, 1-1/8" top, 1.5" bottom
Brake: Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper
Brake rotor: Shimano RT64, CentreLock, 203 mm
Rotor size: Max brake rotor sizes – Frame: 203 mm, min 180 mm, fork: see fork manufacturer

Weight: M - 21.89 kg / 48.26 lbs (with TLR sealant, no tubes)
Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
