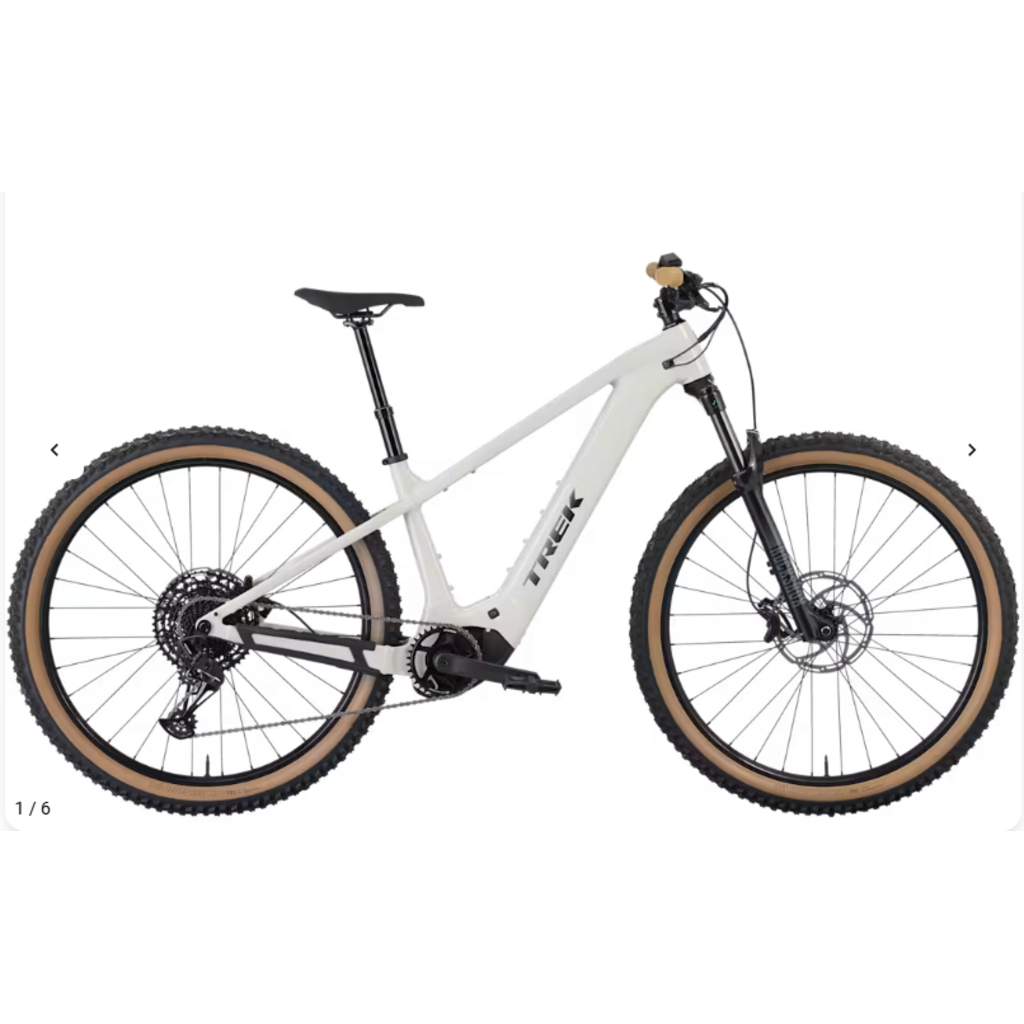

Its Bosch Performance Line motor delivers powerful support for steep climbs and longer adventures, while a 120mm RockShox Recon Silver RL fork keeps handling smooth through rough terrain. Upgraded components like wide tubeless-ready wheels and tires, a SRAM Eagle 12-speed drivetrain, and powerful 4-piston hydraulic disc brakes make it a capable trail bike that’s ready to roam.
- Frame
-
Alpha NEXT Gold Aluminum, tapered head tube, internal routing, rack, fender, and kickstand mount, UDH, Boost148, 12mm thru axle
- *Fork
-
Size: S
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
Size: M , L , XL
RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
- Hub front
-
Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
- Hub rear
-
Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
- Skewer rear
-
- Rim
-
Bontrager Kovee, double-wall, Tubeless-Ready, 32-hole, 23 mm width, Presta valve
- Spokes
-
14 g stainless steel, black
- *Tyre
-
Size: S
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 27.5x2.60"
Size: M , L , XL
Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.60"
- Rim strip
-
- Max tyre size
- Frame: 29x2.60" (S: 27.6x2.60"), Fork: See manufacturer
- Battery
-
- Charger
-
Bosch standard 2A, 230V, smart system
- Computer
-
- Motor
-
Bosch Performance Line, 250 W, 75 Nm, 20 mph (25 km/h in Europe)
- Max assist speed
- 25 km/h
- Shifter
-
SRAM S200 Eagle, 12-speed
- Rear derailleur
-
SRAM S100 Eagle, Half-Mount
- Crank
-
FSA Bosch CK-220, 36T ring, 165 mm length
- Chainring
-
- Cassette
-
SRAM Eagle PG-1210, 10-50, 12 speed
- Chain
-
- Pedal
-
- Max. chainring size
- 1x: 36T, min 32T
- Saddle
-
- *Seatpost
-
Size: M
TranzX JD-YSI34, 150 mm travel, internal routing, 31.6 mm, 456 mm length
Size: L , XL
TranzX JD-YSI34, 170mm travel, internal routing, 31.6 mm, 500mm length
- *Handlebar
-
Size: S
Bontrager alloy, 31.8 mm, 15 mm rise, 720 mm width
Size: M , L , XL
Bontrager Comp, alloy, 31.8 mm, 40mm rise, 780 mm width
- Grips
-
- Stem
-
- Head set
-
- *Brake
-
Size: S , M , L , XL
Tektro HD-M5140 hydraulic disc
Size: S , M , L , XL
Tektro HD-M5140 4-piston hydraulic disc
- Brake rotor
-
Tektro, CentreLock, 203 mm
- Rotor size
- Max brake rotor sizes - Frame: 203mm, min 180mm, Fork: see fork manufacturer
- Weight
- M - 21.90 kg / 48.29 lbs
- Weight limit
- This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg).
